Rockfon® Eclipse wall panel

Aesthetic, frameless acoustic wall panel suitable for offices, reception areas etc. where extra absorption combined with nice design is needed
Download Datasheet
Download Datasheet
Back
A smooth, deep-matt, and super-white surface providing high light reflection, light diffusion and anti-static properties, extending product lifetime
Available in a variety of shaped formats with a clean minimalistic A-edge and an unlimited custom colour range using NCS
Quick and easy to install with the special wall fixing kit. The fixing kit allows for the absorber to be installed in different distances from the wall creating interesting patterns
Stone wool panel
Visible side: smooth, deep matt, super-white painted fleece
Rear side: white backing fleece
Durable painted edges

Colour

White

ColourWhite
Colour groupWhites
NCS (closest colour match)NCS S 0500-N
Light reflection87

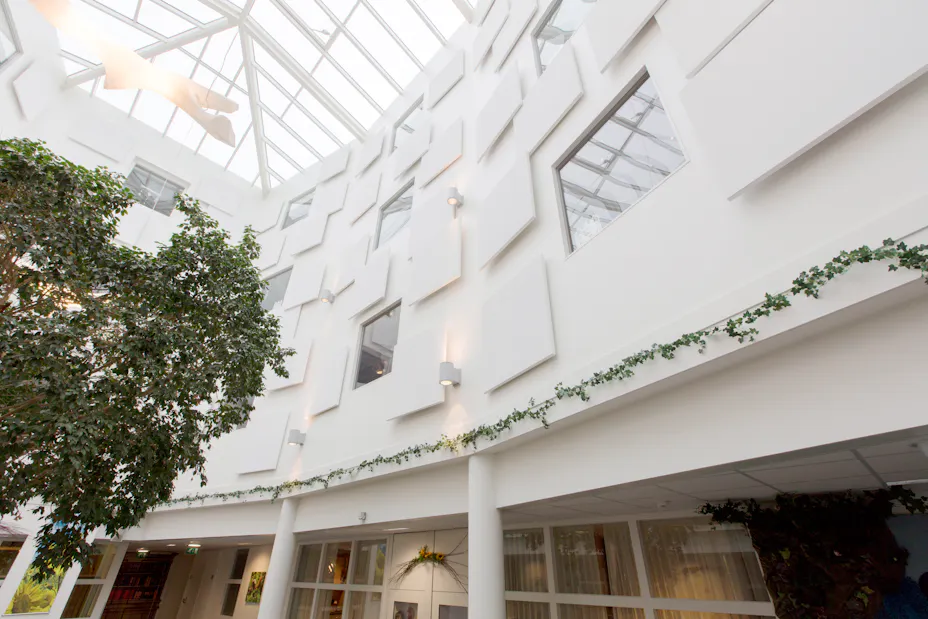

Case studies featuring Rockfon® Eclipse wall panel

1/4
Back

Sound absorption details

Aeq, Equivalent Sound Absorption Area per item (m2 Sabin)
Shape Dimensions 125 Hz 250 Hz 500 Hz 1000 kHz 2000 kHz 4000 kHz
Island shape Circle - 0.30 1.10 1.70 1.60 1.50 1.60
Island shape Circle - 0.30 1.10 1.60 1.50 1.40 1.30
Island shape Square - 0.50 1.30 2.10 2.00 1.90 1.90
Island shape Square - 0.30 0.90 1.80 1.80 1.70 1.70

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Other performances

Reaction To Fire Reaction To Fire A2-s1,d0, Rockfon Eclipse Rectangle 2360: A2‑s1,d0
Reaction to fire is classified in accordance with EN 13501-1.
Light reflection and light diffusion Light reflection and light diffusion 87% light reflection (rear side: 79%) >99% light diffusion
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Visual Appearance Visual Appearance Super-white surface
L value: 94.5.
Deep matt surface, perfect in critical side-light
Gloss: 0.8 gloss unit at 85° angle
The whiteness (L value) of the product is tested in accordance with ISO 7724 and measured on a scale from 1 (black) to 100 (white).
The gloss of the product is tested in accordance with ISO 2813.
Humidity And Sag Resistance Humidity And Sag Resistance Up to 90% RH
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Surface Durability Surface Durability Enhanced durability and dirt resistance.
The surface of some ROCKFON products is specially treated to provide enhanced durability and dirt resistance.
Cleaning Cleaning Vacuum, Damp cloth
Vacuum: The surface can be vacuum cleaned with a soft brush attachment. Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
Hygiene Hygiene Stone wool provides no sustenance to microorganisms
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Recyclability Recyclability Fully recyclable stone wool
Indoor Environment Indoor Environment A selection of Rockfon products have been awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low emission products
Back
Reaction to fire is classified in accordance with EN 13501-1.
Back
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Back
The whiteness (L value) of the product is tested in accordance with ISO 7724 and measured on a scale from 1 (black) to 100 (white).
The gloss of the product is tested in accordance with ISO 2813.
Back
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Back
The surface of some ROCKFON products is specially treated to provide enhanced durability and dirt resistance.
Back
Vacuum: The surface can be vacuum cleaned with a soft brush attachment. Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
Back
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Back
Back
Back

Full range

Edge Shape Dimensions (mm) Thickness (mm) Weight (Kg/m2) Min. suspension height (mm) Recommended installation system
A Circle 800 x 800 40 0.00 55 Rockfon® System Eclipse Wall

Recommended installation system

Frameless wall system Rockfon® System Eclipse Wall Enhanced design freedom using different shapes, angles and wall distances

Tile details

Minimum installation height 55 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Triangle 1160 x 1005 40 0.00 55 Rockfon® System Eclipse Wall

Recommended installation system

Frameless wall system Rockfon® System Eclipse Wall Enhanced design freedom using different shapes, angles and wall distances

Tile details

Minimum installation height 55 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Hexagon 1160 x 1006 40 0.00 55 Rockfon® System Eclipse Wall

Recommended installation system

Frameless wall system Rockfon® System Eclipse Wall Enhanced design freedom using different shapes, angles and wall distances

Tile details

Minimum installation height 55 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Circle 1160 x 1160 40 0.00 55 Rockfon® System Eclipse Wall

Recommended installation system

Frameless wall system Rockfon® System Eclipse Wall Enhanced design freedom using different shapes, angles and wall distances

Sound absorption details

Tile details

Minimum installation height 55 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Square 1160 x 1160 40 0.00 55 Rockfon® System Eclipse Wall

Recommended installation system

Frameless wall system Rockfon® System Eclipse Wall Enhanced design freedom using different shapes, angles and wall distances

Sound absorption details

Tile details

Minimum installation height 55 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Oval 1760 x 1160 40 0.00 55 Rockfon® System Eclipse Wall

Recommended installation system

Frameless wall system Rockfon® System Eclipse Wall Enhanced design freedom using different shapes, angles and wall distances

Tile details

Minimum installation height 55 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Free-form 1760 x 1160 40 0.00 55 Rockfon® System Eclipse Wall

Recommended installation system

Frameless wall system Rockfon® System Eclipse Wall Enhanced design freedom using different shapes, angles and wall distances

Tile details

Minimum installation height 55 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Rectangle 1760 x 1160 40 0.00 55 Rockfon® System Eclipse Wall

Recommended installation system

Frameless wall system Rockfon® System Eclipse Wall Enhanced design freedom using different shapes, angles and wall distances

Tile details

Minimum installation height 55 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Rectangle 2360 x 1160 40 0.00 55 Rockfon® System Eclipse Wall

Recommended installation system

Frameless wall system Rockfon® System Eclipse Wall Enhanced design freedom using different shapes, angles and wall distances

Tile details

Minimum installation height 55 mm

Packaging

Pieces Per Pack
Area Per Pack m2

MS = Minimum construction depth.
Rectangle 2360X1160 mm can only be mounted horizontally by its longest sides and the Triangle with a peak facing downwards.
Contact us for the fixation of free-form Rockfon Eclipse.
Free-form sizes bigger than 2400 length or 1200 width will be produced as two halves.
Contact us for special shapes, colours, sizes, lead times and minimum quantities.
