FAQ - Acoustics

Yes, Rockfon has a variety of solutions. This includes a number of wall to wall acoustic panels and acoustic wall islands in our Rockfon Eclipse® range. These are frameless, come in a wide range of colours and are suitable for a variety of applications.

Yes, there are many Rockfon solutions that can be used to provide high levels of sound absorption in thermal mass concept / exposed soffit buildings. These include:

• framed Rockfon Universal™ Baffle, Rockfon Humitec™ Baffle and Rockfon Industrial™ Baffle
• frameless Rockfon Contour® baffle
• various acoustic wall linings
• a variety of ceiling islands, including multi module framed infinity islands and single module Rockfon Eclipse® frameless islands.

Yes, it is Rockfon Mono® Acoustic and can be used on both ceilings and walls.

This is possible because of the the specially applied ‘acoustically open’ surface finishes and the ‘acoustically porous’ nature of the pure stone wool core. Sound / noise passes through the products’ surface and is very efficiently absorbed in the stone wool core where it is transformed from sound energy into miniscule amounts of heat energy.

Yes, based on completed tests, Rockfon Scholar™ and Rockfon Blanka® dB46 ceilings provide a significant improvement to the performance of lightweight roof constructions, potentially allowing them to be applicable for BREEAM credits and be fully compliant with the guidelines of BB93 and HTM 08-01 acoustics in schools and healthcare buildings respectively.

Noise is audible energy that can adversely affect ones physiological and psychological wellbeing. The use of sound absorbing material reduces sound reflection and will create a comfortable indoor climate.

Stone Wool Acoustic Tiles

Stone wool is by nature a highly sound absorbent material, bringing excellent acoustic properties to our ceiling and wall solutions.  This allows you to achieve a high level of acoustic comfort while maintaining a high level of aesthetics. The acoustical ratings of Rockfon products have been tested in independent and certified laboratories.

• In schools, up to 70% of the consonants spoken by teachers cannot be heard by pupils⁽¹⁾
• In hospital environments, noise control is very important to the recovery of patients as “unwanted sound” can increase heart rate, blood pressure and respiration rate⁽²⁾
• In offices, 70% of employees believe that their productivity would be higher if their environment was less noisy⁽³⁾

¹⁾ “Speech Intelligibility in Classrooms” research project conducted by The Department of Building Engineering & Surveying of Herriot-Watt University in Edinburgh
²⁾ Health Technical Memorandum 08-01: Acoustics
³⁾ Julian Treasure, Sound Business, 2007

When a sound wave hits a surface, part of the energy is reflected, the material absorbs part of it and the rest is transmitted. The quality of sound absorption is determined by the layout of the space and the materials used.

By nature, stone wool offers excellent sound absorption properties.

Proper sound absorption

• Sound absorption controls the ambient sound pressure level in a room to create comfortable environments in which people can concentrate and work productively without noise-induced irritation or stress.
• It increases speech intelligibility making presentation and conversation easier to understand.
• It reduces reverberation (echoes) and the ‘cocktail party’ effect where sound levels rise uncontrolled in a room as people talk louder and louder to make themselves heard until everyone is shouting.

Our stone wool ceilings can help limit the transmission of unwanted sound from one room to another. The total sound insulation of adjacent spaces is expressed by DnT,w, R´w or DnT,A values. It represents the ability of a total construction (partition, ceiling, floor and all connections) to block speech, music or other noise, that is transmitted through the air and through building elements. The higher the value (in dB) the better the performance.

Some regulators prescribe minimum levels of 35-45 dB between offices or 50-60 dB between apartments and dwellings. Mass, air-tightness and absorbing ability are the primary properties that determine the ability of a material to insulate sound. Mass, air-tightness and sound absorption are the primary properties that determine the ability of a material to insulate against sound.

The impact sound insulation between two floors is an expression of the ability of a construction to insulate from sounds generated by impacts e.g. footsteps, slamming doors. It is characterised by the impact sound pressure level L’nT,w and is rated in dB. The lower the value the lower the sound pressure level thus the better the impact sound insulation. Some regulators prescribe maximum L’nT,w (L’nT(Tmf,max),w in the case of schools) levels of 60 dB in classrooms and offices.

Sound transmission paths between adjacent spaces

Rockfon stone wool ceilings can help limit the transmission of sounds from one room to another.

Improved sound insulation

• All walls and ceilings, to some degree, limit sound transmission from one room to another.
• The use of building elements with superior sound insulation properties contributes to a higher degree of privacy and confidentiality.
• Sound insulation contributes to lower sound pressure levels in adjoining rooms, creating more comfortable environments in which everyone can easily concentrate.

Sound pressure level indicates how loud it is in the room. Exposure to continual high sound pressure levels or to high sound peaks can, over time, damage an individual’s health.

Average sound pressure level is important for all environments – from factories to kindergartens. The European Union has defined maximum exposure levels at 85 dB(A), and in some countries, public events like concerts should not exceed 96 dB(A).

The sound pressure level in a room depends on the strength of the sound source, the room shape and the number and quality of sound absorbing surfaces.

Source: United States Department of Labor, Occupational Safety and Health Administration

Industrial environments very often have high sound pressure levels and require specific acoustic corrections. Rockfon offers a selection of solutions like high absorbing ceilings, baffles or wall absorbers.Sound pressure level indicates how loud it is in the room. Exposure to continual high sound pressure levels or to high sound peaks can, over time, damage an individual’s health.Sound pressure level indicates how loud it is in the room. Exposure to continual high sound pressure levels or to high sound peaks can, over time, damage an individual’s health.

The most important factor in all regulations is reverberation time, which is defined as the time it takes for the sound pressure level to drop 60 dB below its original level.

In most cases, a low reverberation time improves the acoustical comfort. In some situations, however, such as concerts or conference halls, a higher reverberation time can improve listening comfort.

Reverberation time depends on the size and shape of the space along with the amount, quality and positioning of absorbing surfaces within the space. The more sound absorption in the room, the lower the reverberation time.

Speech intelligibility measures how well speech can be heard and understood in a room. It is closely linked to reverberation time.

Many factors influence speech intelligibility. These include the strength of the speech signal, the direction of the source sound, the level of background noise, the reverberation time of the room and the shape of the room.

The common way of expressing speech intelligibility is the Speech Transmission Index (STI) value on a scale from 0 to 1. In a class room, for example, the level should preferably be above 0.6. A simplified (faster) tool for speech intelligibility is the Rapid Speech Intelligibility Transmission Index (RASTI).

Total sound insulation is the ability of a room (partitions, ceiling, floor and all connections) to prevent sound from travelling through the air and through building elements.

The total sound insulation of adjacent spaces is expressed by D_nT,w, R’_w or D_nT,A values. The higher the value (in dB), the better the performance. Mass, air-tightness and absorbing ability are the primary properties that determine the ability of a material to insulate against sound. Some regulators require a minimum of 35-45 dB between offices.

Experience by the user:

30 dB (A)
A conversation in the adjacent room can be clearly heard and understood

40 dB (A)
A conversation in the adjacent room is experienced vaguely

50 dB (A)
The sound in the adjacent room cannot be heard

Impact sound insulation

Impact sound insulation between floors is the ability of a construction to insulate from impact noises such as footsteps. It is characterised by the impact sound pressure level L’_nT,w in dB. The lower the value, the better the impact sound insulation. Regulators usually allow a maximum L’_nT,w of 60 dB in classrooms and offices.

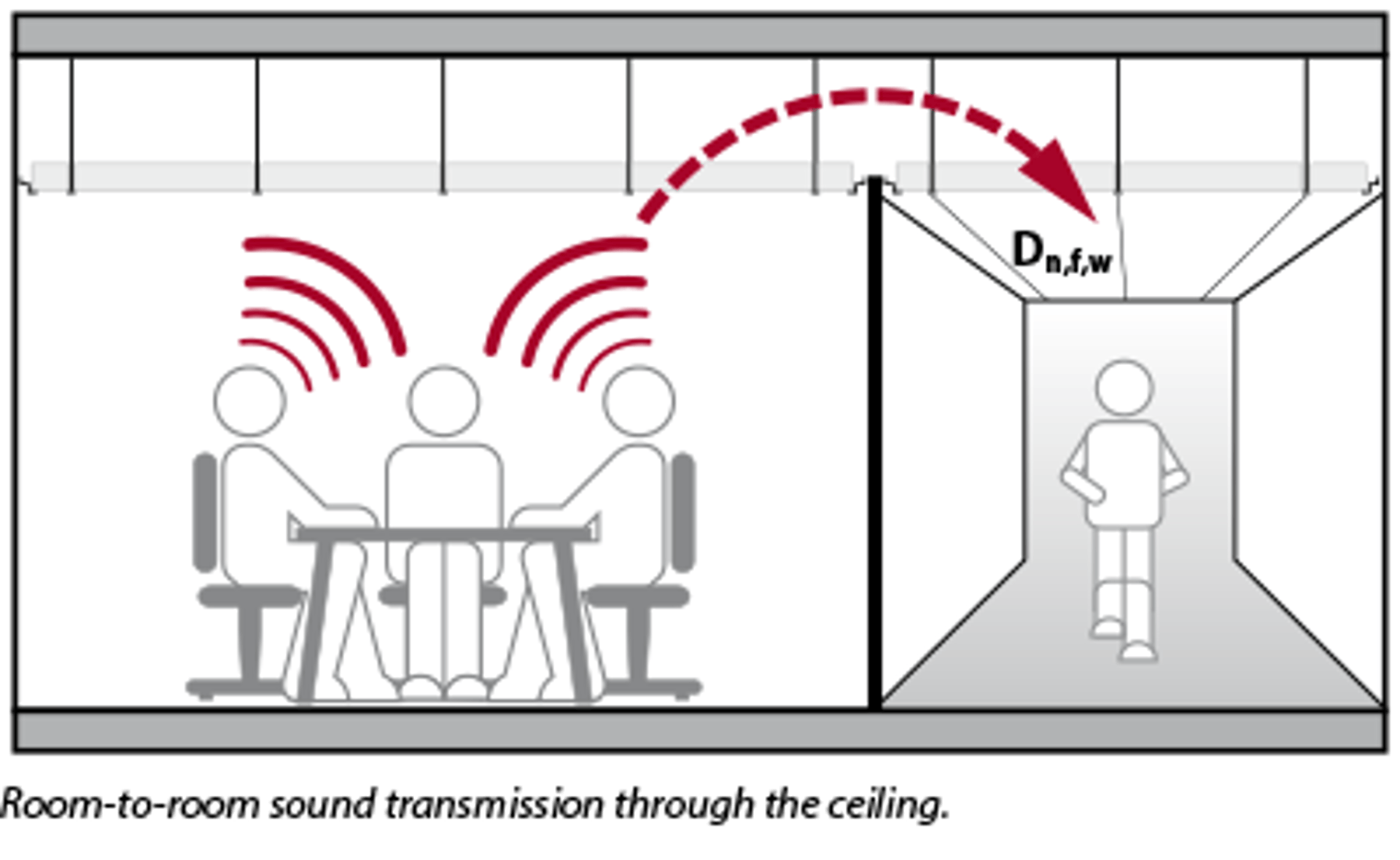

Room-to-room sound insulation

The D_n,f,w value in dB quantifies the longitudinal sound insulation provided by the ceiling between two rooms. The higher the Dn,f,w value, the better the room-to-room sound insulation. The D_n,f,w value can be considered equal to the previously-used D_n,c,w value.

D_n,f,w is used by acousticians to predict the total sound insulation D_nT,w (R’_w; D_nT,A) between adjacent spaces.

Direct sound insulation

The direct sound insulation in dB indicated by the sound reduction index (R_w) measures the reduction of sound passing through the suspended ceiling.

Ceilings with high sound reduction index R_w will help prevent noise generated by installations in the plenum from entering the room.

C & C_tr values

To rate the impact of sound insulation in specific conditions, laboratories report D_n,f,w or Rw indicating C and C_tr values. C is the adaptation term for “pink” noise such as speech, music, TV, children playing, etc. C_tr is the adaptation term for traffic noise. The lower the C and C_tr values, the better.

There is a strong synergy between sound absorption and the room-to-room sound insulation experienced in practice. This is not reflected by the D_n,f,w value measured in laboratories. At equal D_n,f,w value, the use of a highly sound-absorbent ceiling will result in a lower sound pressure level in the receiving room.

The ceiling with the highest αw will do a better job of lowering the sound pressure in both the sending and the receiving room. The impact of sound absorption on the perceived sound pressure level can be calculated and has been verified through in-situ testing.

 With an identical D_n,f,w value (in this case 44 dB), a high-absorbing ceiling contributes to a lower sound pressure level than a low-absorbing ceiling.

The Rockfon dB range

Our dB range has been designed to block sound from travelling from room to room, providing a unique combination of both outstanding sound insulation and sound absorption in one panel.
